MSA-250 SHRINK SLEEVE LABEL APPLICATOR

The MSA-250 is our latest offering for Vertical Shrink Sleeve Labeling and Tamper Banding equipment. It was inspired by our customers that didn’t need all of the bells and whistles that comes standard with our HSA-250. You still get the same proven and reliable performance with similar quick change capabilities. This robust machine is intended to be an integral part of your daily packaging operations.

The MSA-250 applicator is a medium speed machine, capable of running a wide range of shapes and sizes up to 250 products per minute. This machine design uses proven components from our higher speed machines, including a mandrel in combination with servo motion control on the feed wheels and knife assembly for precise feeding and cutting of the film. Changeover has been simplified using a combination of scales and a few strategically placed digital counters. The machine’s design features provide a great solution that can be used for flexible packaging in several industries: including food, beverage, pharmaceutical, home care, cosmetics, and many more.

Request A Quote

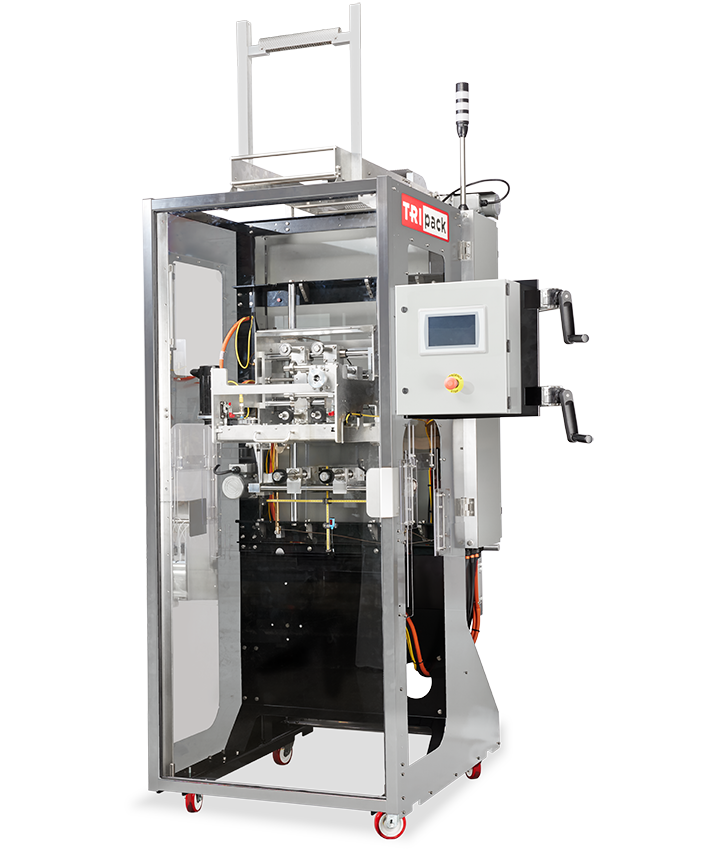

MSA-250 Shrink Sleeve Applicator

Shrink Applications

shrink applications

Standard Specifications

Standard Power	240 Volt, 3 Phase	Product Range	1” – 6” Diameter
Lay Flat Range	40mm – 250mm	Cut Length Range	30mm – 330mm
Max Speed	250 ppm	Max Film Roll OD	19”
Film Core ID Sizes	5” or 10”	Film Gauge Tolerance	35-70 microns (1.38-2.75 mil)
Lay Flat Tolerance	-0mm / +1mm	Coefficient of Friction	≤ 0.25
Material Types	PET, PETG, OPS, PLA, PVC	Dimensions (LxWxH)	60” x 58” x 109”

*Other power options available, applicator stand is required if cut length exceeds 200mm and/or conveyor height exceeds 40”, max speed is based on 40mm cut length

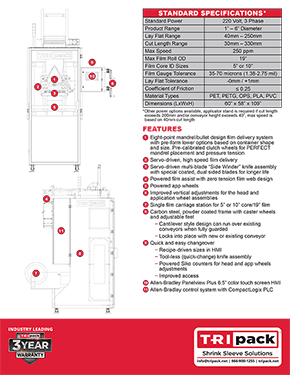

DOWNLOAD BROCHURE

Benefits

Reliable Performance with Servos
Size Range and Material Type Flexibility
“Side Winder” Knife Design for Great Cut Performance and Longer Blade Life
Simplified Tool-Less Changeovers with Quick Change Tooling
Foolproof Wheel Tensioning Devices
Print Registration or User Input for Control of Cut Length
Airbox Zero Tension Film Control Reduces Mechanical Components and Unneeded Tension
Self-Contained Design with Single Roll Unwind Station

Like all Tripack Applicators, the MSA-250 has full complement of options, including customized product handling solutions, film accumulation devices, and shrink tunnels. Buy the applicator or integrate it into a full Tripack system!
