Shrink Applications

shrink applications

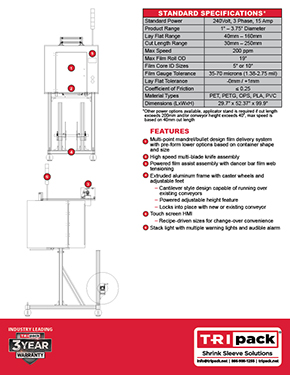

Standard Specifications

Standard Power 240 Volt, 3 Phase, 15 Amp Product Range 1” – 3.75” Diameter
Lay Flat Range 40mm – 160mm Cut Length Range 30mm – 250mm
Max Speed 180 ppm Max Film Roll OD 19”
Film Core ID Sizes 5” or 10” Film Gauge Tolerance 35-70 microns (1.38-2.75 mil)
Lay Flat Tolerance -0mm / +1mm Coefficient of Friction ≤ 0.25
Material Types PET, PETG, OPS, PLA, PVC Dimensions (LxWxH) 29.7” x 52.37” x 99.9”

*Other power options available, applicator stand is required if cut length exceeds 200mm and/or conveyor height exceeds 40”, max speed is based on 40mm cut length

Benefits

  • Proven & Reliable Performance
  • Easy To Use
  • Small Footprint
  • Mandrel Film Delivery System
  • Mobile Frame with Casters and Adjustable feet – Easy to Move In/Out of Production Line
  • Touch Screen HMI
  • Self-Contained Design

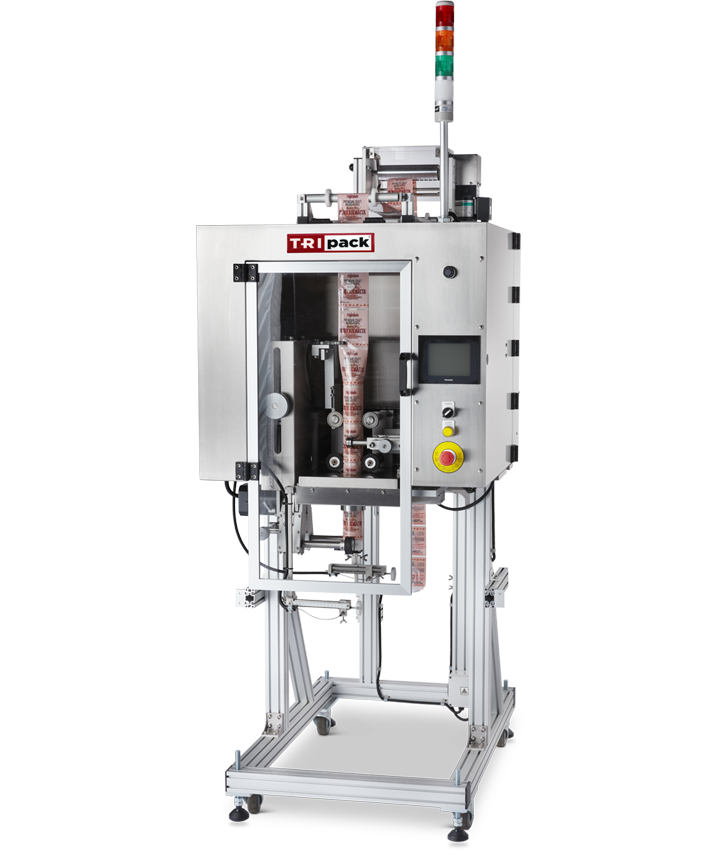

Like all Tripack Applicators, the MSA-180 has full complement of options, including customized product handling solutions, film accumulation devices, and shrink tunnels. Buy the applicator or integrate it into a full Tripack system!
