Home | Equipment | HSA-250S Shrink Sleeve Applicator

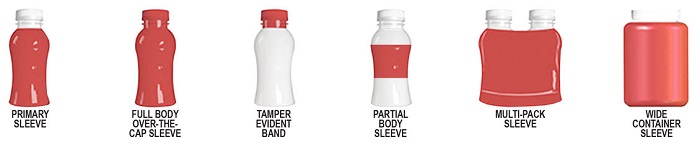

Shrink Applications

shrink applications

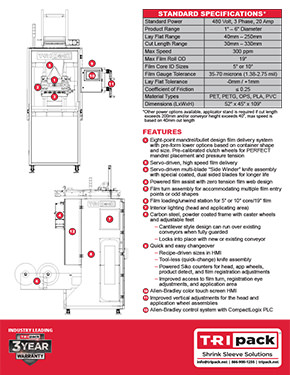

Standard Specifications

Standard Power 480 Volt, 3 Phase, 20 Amp Product Range 1” – 6” Diameter
Lay Flat Range 40mm – 250mm Cut Length Range 30mm – 330mm
Max Speed 500 ppm Max Film Roll OD 19”
Film Core ID Sizes 5” or 10” Film Gauge Tolerance 35-70 microns (1.38-2.75 mil)
Lay Flat Tolerance -0mm / +1mm Coefficient of Friction ≤ 0.25
Material Types PET, PETG, OPS, PLA, PVC Dimensions (LxWxH) 80” x 58” x 109”

*Other power options available, applicator stand is required if cut length exceeds 200mm and/or conveyor height exceeds 40”, max speed is based on 40mm cut length

Benefits

  • Reliable Performance with Servos
  • “New” Servo-Driven Applicating Wheels Provide Better Film Control and Shot Timing
  • Size Range and Material Type Flexibility
  • “Side Winder” Knife Design for Great Cut Performance and Longer Blade Life
  • Simplified and Repeatable Tool-Less Changeovers with Quick Change Tooling
  • Foolproof Wheel Tensioning Devices
  • Print Registration or User Input for Control of Cut Length
  • Airbox Zero Tension Film Control Reduces Mechanical Components and Unneeded Tension
  • Self-Contained Design with Dual Roll Unwind Station

Like all Tripack Applicators, the HSA-250S has full complement of options, including customized product handling solutions, film accumulation devices, and shrink tunnels. Buy the applicator or integrate it into a full Tripack system!
